MIL-PRF-49471/1A(CR)
Minimum Capacity Requirements
in Hours to 6.00 Volts
Capacity Test
I
3.2
L
1.7
H
6.2
HT
6.0
LT
1.6
IT
3.0
LR1
47.0
Initial voltage delay: During the I, H, HT, and IT discharge tests, initial voltages below 6.0 volts
cannot exceed a 5.0 second duration. During the L and LT discharge tests initial voltages below
5.70 volts cannot exceed a 60.0 second duration.
Connector: The connector configuration and operating temperature range requirements shall be
certified in the First Article Test Report. The connector shall be in accordance with SC-C-
179492 with the following exceptions: (1) Sheet two of SC-C-179492 does not apply. (2)
Mounting screws are optional. (3) Operating temperature range for the connector shall be from a
low of-55oC to a high of 125oC. (4) The connector test described in paragraph 4.7.15 shall be
performed 10 times with SM-D-687888. (5) Each of the metallic sockets in the connector (top
view) shall conform to Figure 2. Each socket shall be cylindrical in shape and may have a single
gap with a maximum opening of 30 degrees. The socket shall accept a number 16 pin.

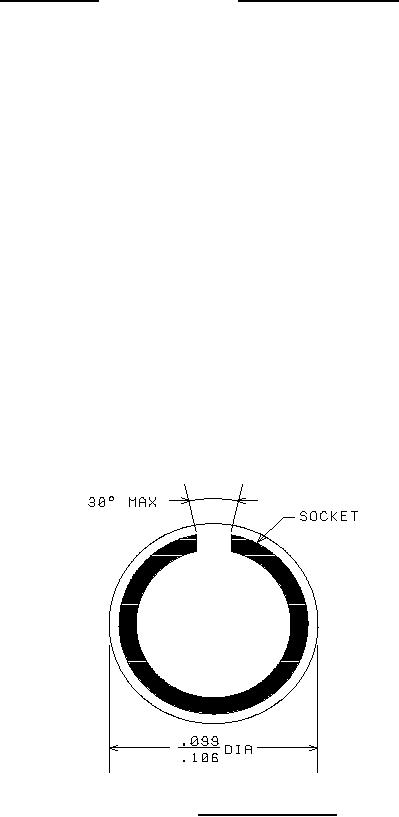

Figure 2. Socket (Top View)
3
