MIL-B-49030A
Inches
Millimeters
Ltr
Min
Max
Min
Max
A
.282
.284
7.16
7.21
B
.140
.146
3.56
3.71
C
.260
.265
6.60
6.73
D
---
.425
---
10.80
E
---
.150
---
3.81
NOTES:
1. All dimensions are in inches.
2. Metric equivalents are for general information only.
3. Stud shall be of plated soft brass not less than .015 inch (0.38 mm) in thickness.
4. Socket shall be plated spring brass.

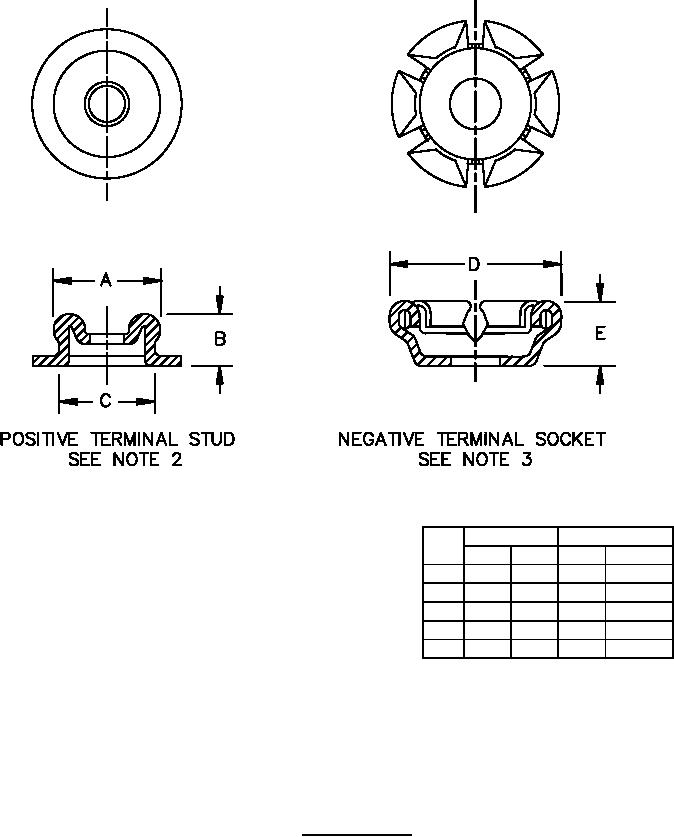

FIGURE 2. Snap-on terminals.
10
