MIL-PRF-49471/7A(CR)
Stud, Positive Terminal
Socket, Negative Terminal

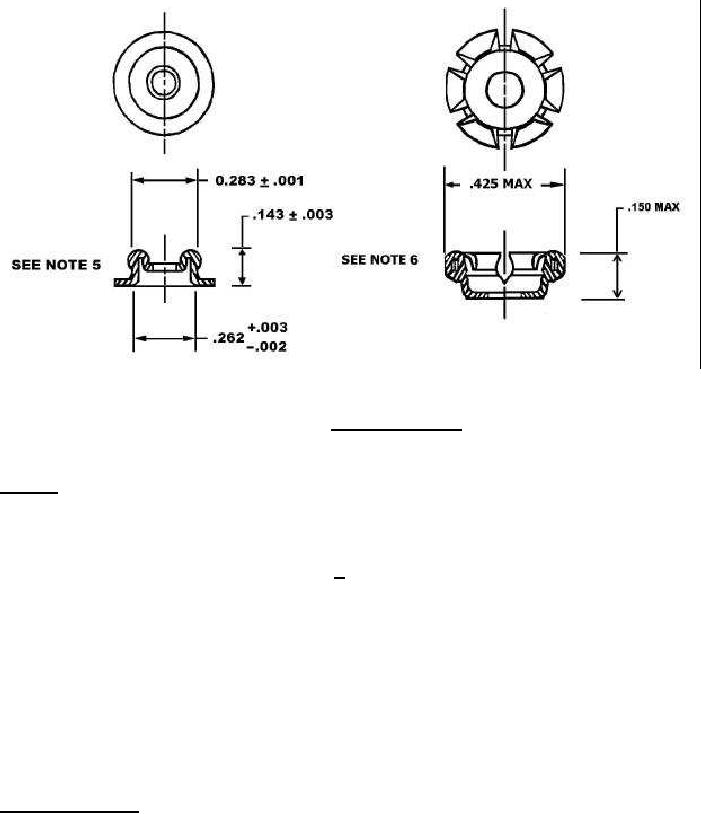

FIGURE 3. Battery Terminals
NOTES:
1. All dimension are in inches.
2. Tolerances, unless otherwise specified, are +.015 inch.
3. The battery connector shall be snap-on terminals per Figure 3 with protective shield (negative
terminal) as shown in Figure 2.
4. Terminal and voltage marking to be embossed or impressed.
5. Stud shall be of plated soft brass not less than 0.015 inches thickness.
6. Socket shall be plated spring brass.
REQUIREMENTS:
Dimensions and configuration: See Figure 1 & 2.
Maximum voltage: 16.5 volts.
Cut-off voltage (for capacity): 11.00 volts.
3
